Resideo  |  Genuine OEM Part Number: V8043E1012/U

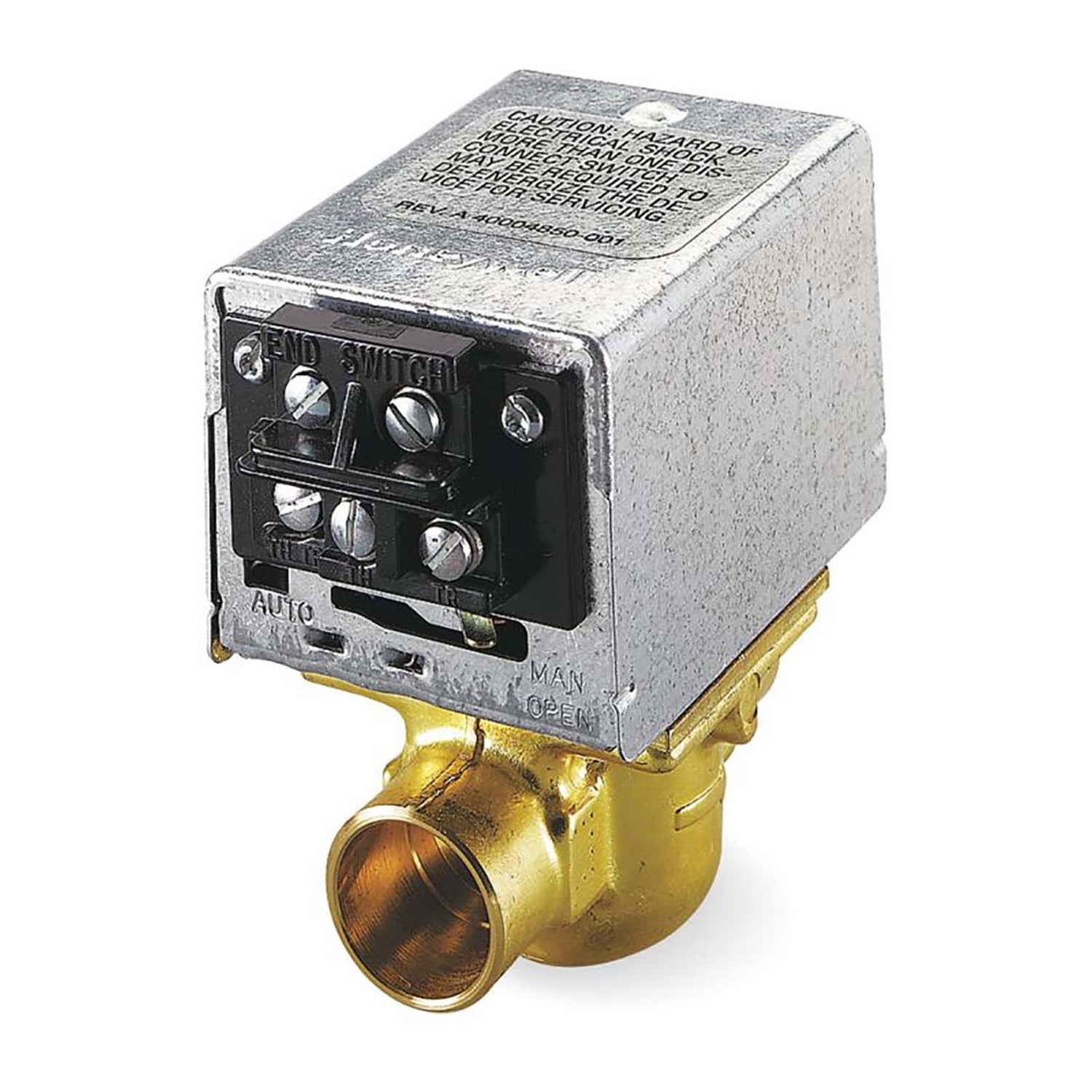

Resideo V8043E1012/U 3/4" Sweat Zone Valve 24 VAC 50/60 Hz 3.5 Cv 18" Leads End Switch

$181.00
Shipping calculated at checkout.
Delivery by , Order within

Features
  • Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure
  • Valve returns to automatic position when power is restored
  • Compact construction for easy installation
  • Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
  • Actuator motor may be replaced without removing the valve body or draining the system

Description

Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.

Attributes

Condition NEW
Brand name Resideo
Dimension depth 2.5 in
Dimension height 4 in
Dimension width 4 in
Frequency 50/60 Hz
Global trade identification number 00085267990042
Manufacturer Resideo
Manufacturer part number V8043E1012/U
Material Brass
Maximum pressure 125 PSI
Nominal size 3/4
Prop65 warning Yes
Taxonomy Plumbing > Bathroom Hardware & Accessories > Shower Curtain Rods
Voltage 24V

Documentation

Brochure Specification Sheet Sell Sheet Catalog Submittal Installation and Operation Manual

Delivery and Shipping

Dimensions:
4 in x 4 in x 2.5 in
Resideo V8043E1012/U 3/4" Sweat Zone Valve 24 VAC 50/60 Hz 3.5 Cv 18" Leads End Switch
Resideo

Resideo V8043E1012/U 3/4" Sweat Zone Valve 24 VAC 50/60 Hz 3.5 Cv 18" Leads End Switch

$181.00

Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
