White-Rodgers  |  Genuine OEM Part Number: 1F83C-11PR

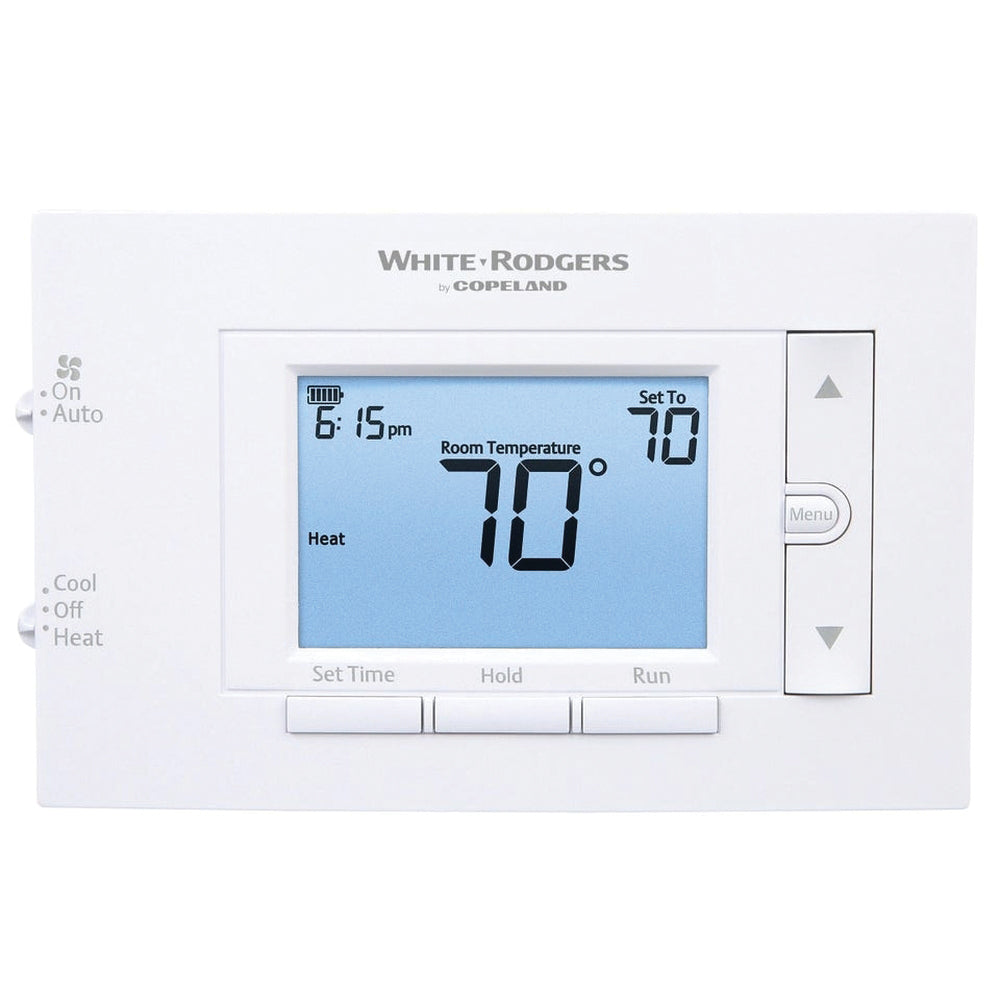

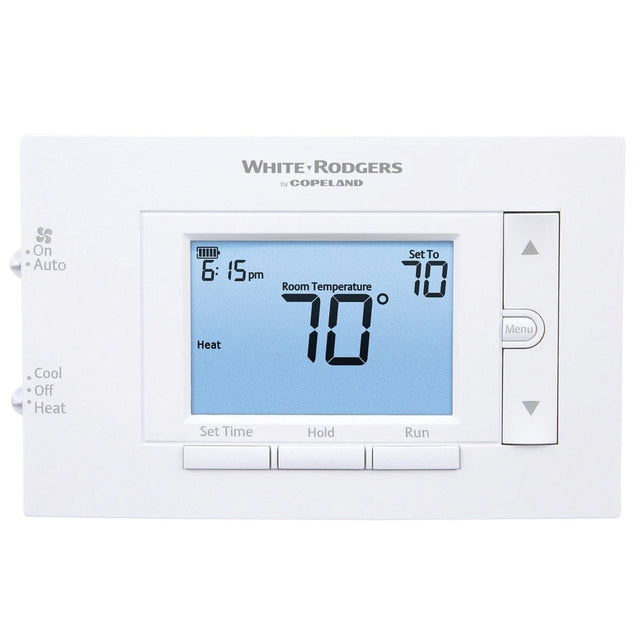

White-Rodgers 1F83C-11PR Single-Stage Digital Thermostat with 4.5" Display, 1H/1C, 7-Day, 5+1+1

$60.47 $61.94
Shipping calculated at checkout.
Delivery by , Order within

Features
  • Attractive Sensi thermostat styling for non-wi-fi applications
  • Universal (1-stage, multi-stage, heat pump), conventional and heat pump models bright, high contrast backlight
  • Automatic heat/cool changeover option
  • Keypad lockout and adjustable heat/cool temperature limits
  • Built-in dual fuel logic program eliminates the need for an outdoor sensor

Description

The White-Rodgers 1F83C-11PR is a single-stage (1H/1C) digital thermostat with your choice of 7-day, 5+1+1 day or non-programmable operation. It works with 24 volt or millivolt systems and can be powered by hardwire and/or battery.

  • Single-stage (1H/1C) with program choices: 7-day, 5+1+1 day or non-programmable
  • Backlit display
  • 24 volt or millivolt compatible
  • System switch: Heat, Off, Cool; fan switch: Auto, On
  • Keypad lockout
  • Temperature limits
  • Dual power: hardwire and/or battery
  • Temperature range: 45-99°F
  • Terminals: RH, RC, C, W, Y, G, O/B

Note: This thermostat is not compatible with 3-wire zone valves.

Attributes

Condition new
Brand name White-Rodgers
Dimension depth 2 in
Dimension height 6.5 in
Dimension width 4 in
External testing certification UL, CSA, AHRI, ACCA, ISO 9001, NEC Class II
Global trade identification number 00662766591514
Item weight 0.63
Manufacturer White-Rodgers
Manufacturer part number 1F83C-11PR
Taxonomy HVAC > HVAC Parts and Accessories > HVAC Thermostats
Temperature range 32F to 105F
Voltage 24V

Documentation

Installation Manual Catalog Spec Sheet

Delivery and Shipping

Weight:
0.63 lb
Dimensions:
4 in x 6.5 in x 2 in
