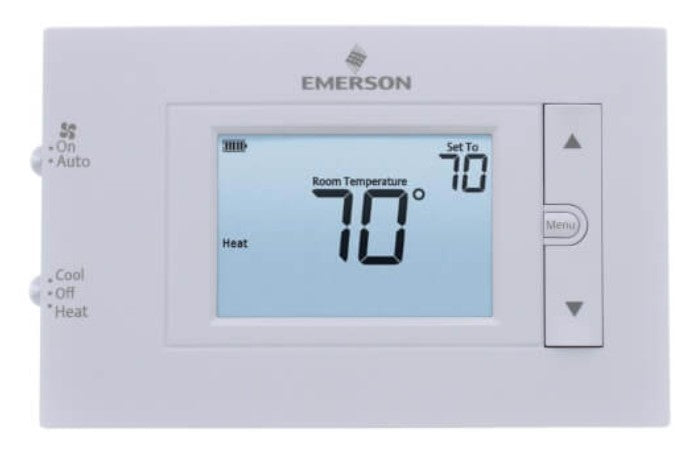

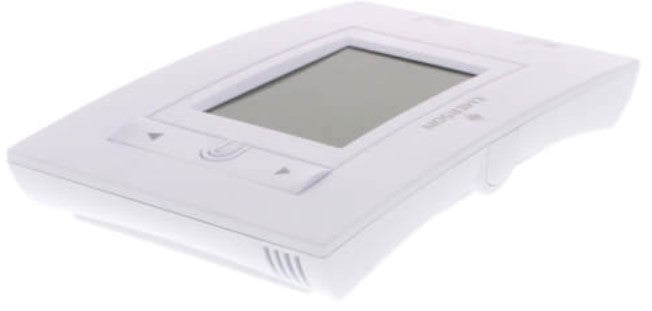

White-Rodgers 1F83C-11NP Single-Stage Non-Programmable Thermostat, 1H/1C, 4.5" Display

Thermostat; Type Digital, Non-Programmable, 1-Heat/1-Cool 1-Stage, 1-Heat/1-Cool Heat Pump; Cover Type Rectangular Horizontal; Voltage Rating 30 Volt AC (Battery), 20 to 30 Volt AC at 50/60 Hertz (Hardwire); Current Rating 1.5 Amp; Temperature Rating 32 to 105 Deg F; Size 6 Inch Width x 1-1/8 Inch Depth x 3-3/4 Inch Height; Approval UL, CSA, AHRI, ACCA, ISO 9001, NEC Class II; Display Size 4.5 Square Inch; Terminal Designation RC, RH, C, W, Y, O/B, G; Setpoint Temperature Rating 45 to 99 Deg F; Display Temperature Rating 32 to 99 Deg F; Operating Humidity Rating 90 Percent; Includes Keypad Lockout; Application Gas/Oil/Electric System

• Attractive Sensi thermostat styling for non-wi-fi applications
• Universal (1-stage, multi-stage, heat pump), conventional and heat pump models bright, high contrast backlight
• Automatic heat/cool changeover option
• Keypad lockout and adjustable heat/cool temperature limits
• Built-in dual fuel logic program eliminates the need for an outdoor sensor

Weight:

0.61 lb

Dimensions:

4.3 in x 6.3 in x 2.05 in
