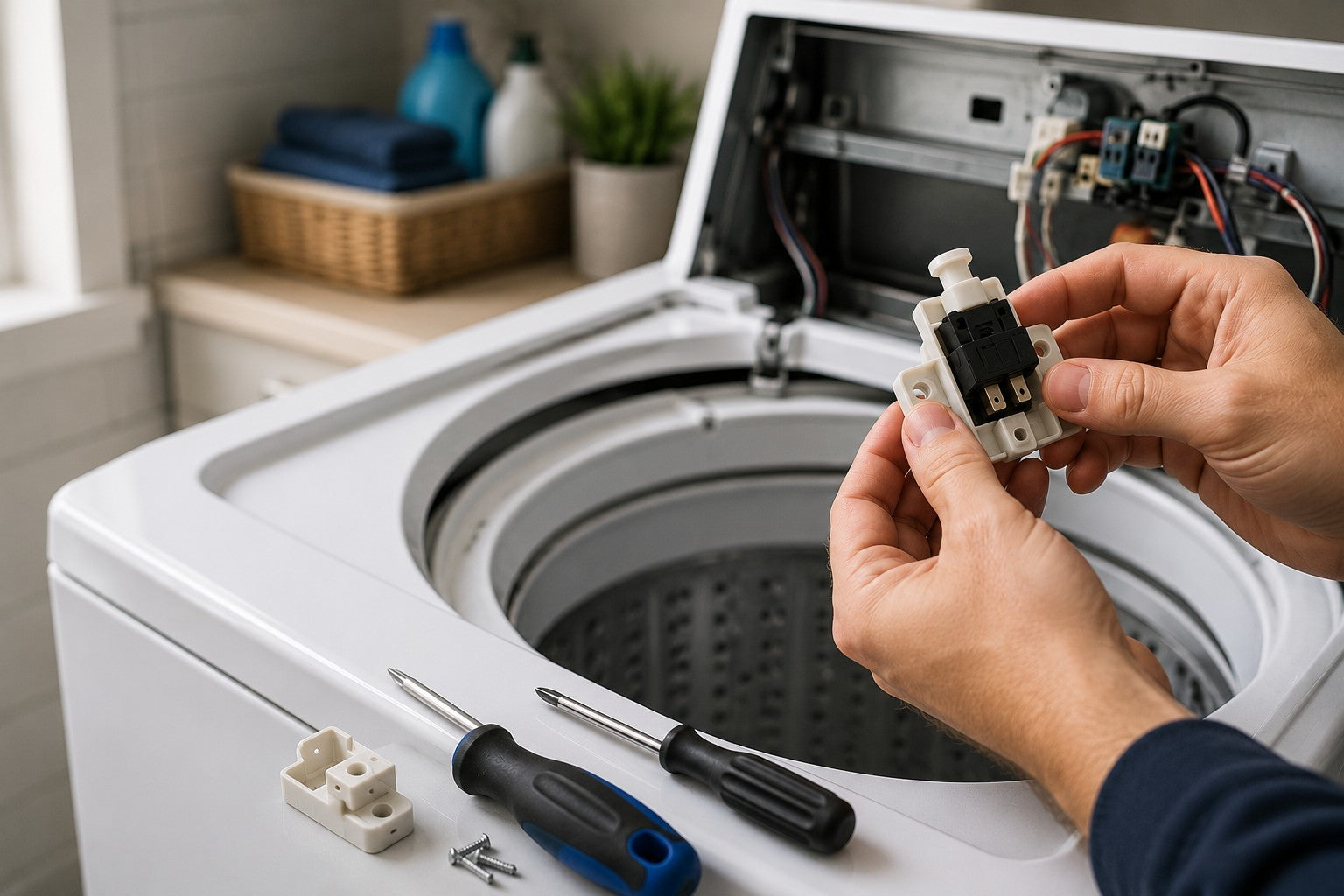

The Most Common Washing Machine Repair: Replacing a Faulty Lid Switch

One of the most common washing machine repairs is replacing a faulty lid switch (for top-load washers) or door lock assembly (for front-load washers).

When these components fail, the machine might fill with water but refuse to spin, agitate or complete the wash cycle. The good news is that this repair is relatively inexpensive and can often be completed by a DIY homeowner in less than an hour.

How to Diagnose the Problem

A faulty lid switch is often the culprit if your washing machine displays any of these symptoms:



• The washer fills with water but won't spin.
• The machine will not start a cycle.
• Agitation stops unexpectedly.
• The washer thinks the lid or door is open when it's closed.
• You hear a clicking sound but the cycle won't continue.

To test for a bad lid switch:

1. Unplug the washing machine.
2. Open and close the lid slowly.
3. Listen for a noticeable "click" as the lid closes.
4. If there is no click, the switch might be broken.
5. Inspect the lid strike (the small plastic piece that activates the switch) for damage.

For a more accurate diagnosis, use a multimeter to test the switch for continuity. No continuity typically indicates a failed component that needs replacement.

Parts You'll Need

Depending on your washer model, you might need:

• Replacement lid switch assembly ($30-$125)
• Replacement lid strike ($15-$25)
• Door lock assembly for front-load washers ($30-$120)
• Wire connectors (if required)
• Manufacturer-approved replacement screws

Always verify the correct part number using your washing machine's model number before ordering.

Tools Required

You likely already have most of these tools:

• Phillips screwdriver
• Flathead screwdriver
• Nut driver or socket set
• Putty knife (for some models)
• Multimeter (optional but recommended)
• Work gloves

DIY Replacement Instructions

Step 1: Disconnect Power

Safety comes first. Unplug the washing machine from the electrical outlet. If the machine is hardwired, switch off the breaker.

Step 2: Access the Lid Switch

On most top-load washers:

1. Open the control console.
2. Remove the screws securing the console.
3. Tilt the console back.
4. Disconnect the cabinet clips holding the washer body in place.
5. Lift the cabinet to expose the lid switch assembly.

Step 3: Remove the Old Switch

1. Disconnect the wiring harness.
2. Remove mounting screws.
3. Lift out the damaged switch.
4. Inspect surrounding wiring for wear or damage.

Step 4: Install the New Switch

1. Position the replacement switch.
2. Secure it using the original screws.
3. Reconnect the wiring harness.
4. Verify all connections are tight.

Step 5: Reassemble the Washer

1. Reinstall the cabinet.
2. Reconnect retaining clips.
3. Return the control console to its original position.
4. Tighten all screws.

Step 6: Test the Machine

Plug the washer back in and run a short cycle. The machine should now recognize the closed lid and proceed normally through agitation and spin cycles.

Estimated Repair Costs

Repair Option	Estimated Cost
DIY lid switch replacement	$15-$50
DIY door lock replacement	$30-$120
Professional service call	$150-$350+



A successful DIY repair can save well over $100 compared to hiring a technician.

When a washing machine won't spin or complete its cycle, a faulty lid switch or door lock is often the first place to look. The repair is affordable, only requires basic tools and is within the capability of many homeowners.

By accurately diagnosing the problem and replacing the defective component, you can extend the life of your washer and avoid the cost of either a service call or premature replacement.
