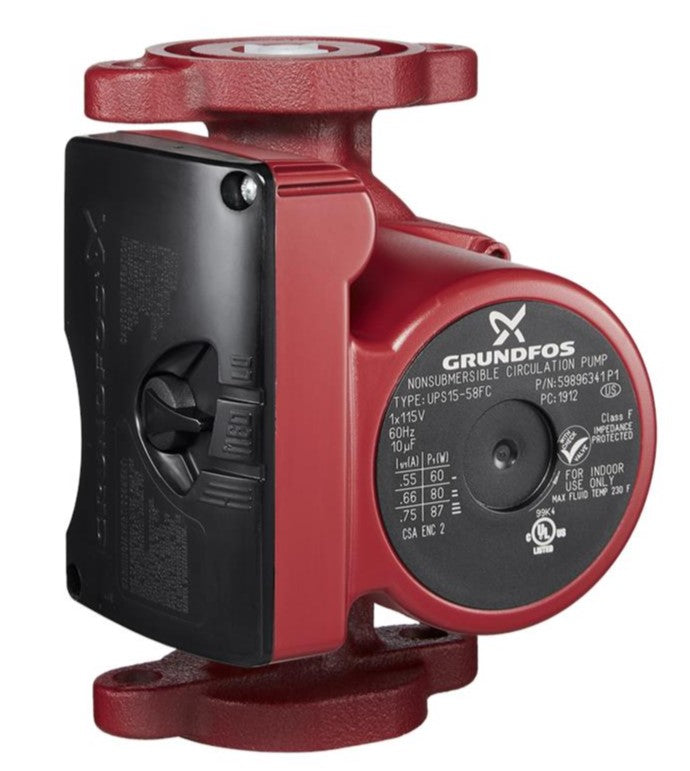

Grundfos 59896341 Small Stator Up Series Circulator Pump - 3-Speed, 1/25 Hp, 115V

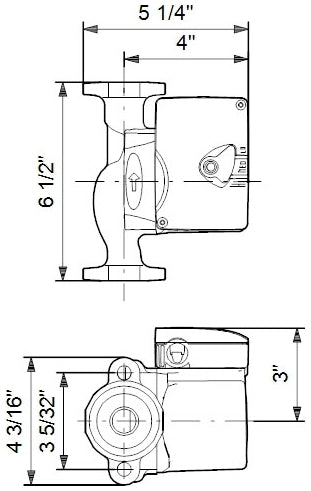

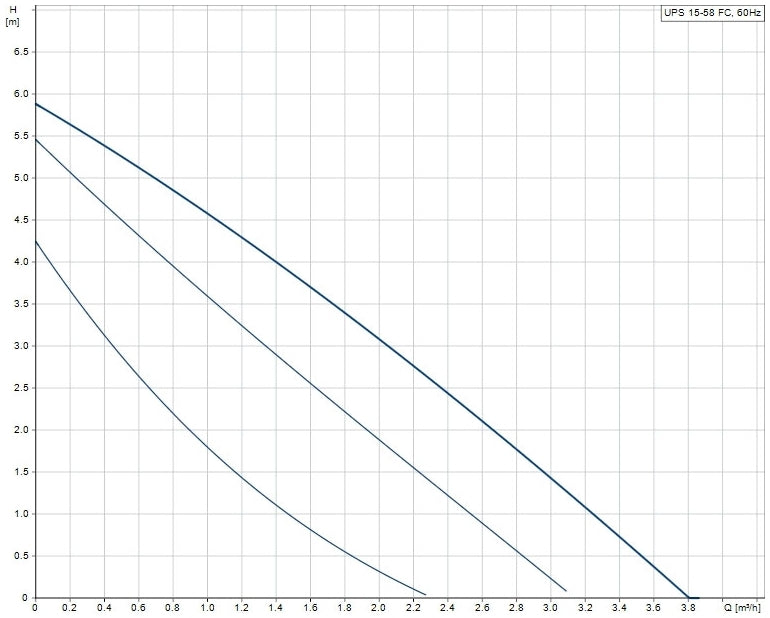

Circulator Pump; Type Canned Rotor, 3-Speed; End Connection GF 15/26 Flanged x GF 15/26 Flanged; Overall Dimensions 5.65 Inch Length x 6.5 Inch Height; Flow Rate 0 to 17 GPM; Discharge Head 0 to 19.5 Foot; Casing Material ASTM 30 B EN-JL1030 Cast Iron; Shaft Material Aluminum Oxide Ceramic; Impeller Material PES Composite; Impeller Design Closed; Power Rating 1/25 HP; Input Supply Rating 115 Volt at 60 Hertz 1-Phase 0.75 Amp; Temperature Rating 36 to 230 Deg F; Pressure Rating 145 PSI; Motor Type 2-Pole, Permanent Split Capacitor; Inclusions/Features Wet Rotor Design, (2) Gasket for Sealing, Stainless Steel Bearing Plate and Rotor Can, Carbon Thrust Bearing, Removable Check Valve, Aluminum Stator Housing, EPDM Rubber O-Ring and Gasket; Exclusions Shaft Seal; Application Boiler/Hydronic Heating, Ground-Source Heat Pump, Radiant Floor Heating, Hydronic and Fan-Coil Heating, Solar Heating, Heat Recovery, Solar Water Heating, Hot-Water Recirculation, Domestic Hot-Water Heating, Chilled-Water Pumping; Applicable Standard UL (Canada and US), CSA; Power Rating 87 Watt; Capacitance 10 Microfarad at 180 Volt; Port to Port Length 165 Millimeter; Pipe Connection Size (2) 1/2 Inch Bolt Flange

• Maintenance-free
• Low noise
• Low energy
• Complete range

Weight:

6.96 lb

Dimensions:

6.75 in x 7.6 in x 6.1 in
